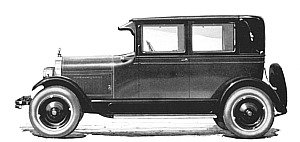

1926 Flint B-40 Brougham

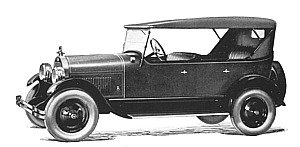

1926 Flint B-40 Touring

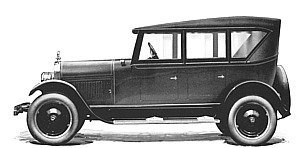

1926 Flint B-40 touring with Winter Top
Special features
- Continental six-cylinder motor
Body styles
| Body style |
|---|
| Brougham |
| Touring |
Serial number range
12477 to 15209
Specifications
| Item | Specification |
|---|---|
| Engine | Continental engine. Six-cylinder, 48 horsepower at 2,400 r.p.m., bore 3-1/8″, stroke 4-1/4″; L-head type, 195.6 cubic inch displacement. |
| Cylinders | Cast en-bloc with upper half of crankcase. |
| Valves | 1-1/2″ diameter, 5/16″ lift. |
| Pistons | Three rings 3/16″ wide, all above piston pin. |
| Connecting Rods | 8-1/4″ center to center; material is drop-forged steel, heat treated; bearing is cast in rod; diameter, 2″; width, 1-3/8″;. |
| Crankshaft | Four-bearing; front , 2″ diameter and 1-1/2″ long; both center bearings, 2″ diameter and 1-3/8″ long; rear bearing, 2″ diameter and 2-11/32″ long; all bearings accessible by removing oil pan without disturbing any other parts. |
| Camshaft | Four-bearing; carbon steel; case hardened and ground. |
| Engine Lubrication | Force feed gear type oil pump; camshaft drilled and oil is forced to camshaft bearings through case to main crankshaft bearings and to connecting rod bearings. |
| Cooling System | Fedders radiator; honeycomb type, 16″ four-blade fan; water capacity of cooling system is 12 quarts. |
| Timing Gear Drive | Morse silent chain; simple adjustment. |
| Carburetor | Plain tube carburetor; combination intake and exhaust manifold with hot spot located on left side of motor and has carburetor attached. |
| Clutch | Single plate, dry type enclosed in flywheel; easily adjusted or removed without disturbing engine or transmission. |
| Transmission | Warner standard selective type; three speeds forward and one reverse, located amidship of car. |
| Electric System | Auto-Lite starting motor, generator, coil and distributor; U.S.L. battery, 92 amp. hours. |
| Drive | Left-hand drive, with spark and throttle levers mounted on steering wheel; ignition and lighting switch mounted on instrument board. |
| Front Axle | Adams; reverse Elliott type, “I” beam, tapered roller hub bearings. |
| Rear Axle | Adams; semi-floating type; spiral bevel pinion and ring gear; ratio, 4-7/9 to 1. |
| Brakes | Double-shoe type on front and rear wheels; operated from foot pedal; emergency connection to hand brake lever. |
| Springs | Semi-elliptic type; front, 35″ long; rear, 50-1/2″ long; spring bolts, 9/16″ diameter; front, seven leaves; rear, seven leaves; springs are 2″ wide. |
| Tires | 5.25 balloon demountable on 20″ disc steel wheels.. |
| Chassis Lubrication | Alemite system. |
| Steering Gear | Worm and lever type; ball thrust bearings with adjustment to take up wear; 16″ steering wheel; horn button mounted on steering wheel. |
| Frame | Pressed steel 4.5″ channel, 5/32″ thick; five cross members and four-point motor suspension. |
| Gasoline Supply | Stewart vacuum feed is used; gasoline tank located at rear of frame and has a capacity of 12 gallons. |
| Wheelbase | 115 inches |
| Headlamps | Barrel type, nickel plated and black enamel; equipped with Smith lenses. |
| Horn | Motor-driven. |
| Standard Equipment | Front bumper, motometer, winged radiator cap, windshield wiper, rear vision mirror, extra ballon tire, tube and tire cover. |
Sources: Durant Family Registry, Durant’s Standard, vol. 15 no. 4.
