Fact sheet for the 1931 Rugby Model S4, from the club’s model catalog: body styles and prices, specifications and period illustrations. See the Rugby overview for the whole Rugby line.
Special features
- 1,000 pound capacity
- 36 horsepower, four cylinder engine
Body styles
| Body style |
|---|
| Canopy Top with Closed Cab |
| Panel Body with De Luxe Cab |
| Straight Side Express Integral Closed Cab |
Period illustrations
1931 Rugby S4 Canopy Top with Closed Cab, factory illustration

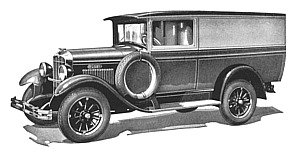

1931 Rugby S4 Panel Body with De Luxe Cab, factory illustration

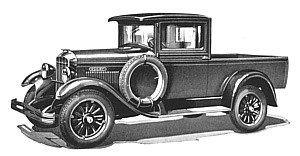

1931 Rugby S4 Straight Side Express Integral Closed Cab, factory illustration
Specifications
- Engine: Four-cylinder, “L” head. Bore 3-3/8″, stroke 4-1/4″. Piston displacement 152 cubic inches. Actual brake horsepower 36 at 2400 r.p.m.; S.A.E. rating 18.2. Nelson Bohnalite alloy pistons. Camshaft driven by Morse silent chain chain drive – adjustable. 3-bearing crankshaft. Cylinder cast en-bloc – detachable head.
- Engine lubrication: Full force feed lubrication.
- Cooling system: Centrifugal water pump; honeycomb type radiator. Water capacity – 6-1/2 quarts. 16 inch, 4-blade fan; flat endless belt.
- Fuel supply: Vacuum feed Stewart. Fuel tank mounted on rear of chassis.
- Clutch: Single dry plate – smooth positive. Enclosed in flywheel – removable without disturbing engine or transmission. Flywheel covered with metal shield.
- Transmission: 3 speed – selective sliding. Ball bearing main shaft. Alloy steel hardened gears. Drive from motor to transmission is through special Spicer metal and rubber double universal joint eliminating shocks.; Gear ratios: First speed, 3.32:1; Second speed: 1.77:1; Third speed: 1.00:1
- Front axle: Drop type, high grade forged I-beam. Center point steering. Ball type thrust bearings on knuckles.
- Rear axle: Semi-floating; Split housing type; 4.44 to 1 ratio.
- Final gear ratios: 1st speed: 14.74 to 1; 2nd speed: 7.86 to 1; 3rd speed 4.44 to 1; reverse 18.6 to 1.
- Brakes: Two shoe 11 inch Bendix Duo-servo brakes – all brakes adjusting to give same braking – no equalizers.
- Chassis lubrication: Alemite high pressure.
- Springs: Semi-elliptic; Front – length 36″; width 1-3/4″; Rear – length 54″; width 1-3/4″
- Steering gear: Worm and Wheel Adjustable. 11 to 1 ratio. 17 inch steering wheel – flush type.
- Wheels: 19 inch wood wheels, 4 inch rims.
- Tires: 29×5.00 Balloon tires; 28×4.75 on convertible roadster.
- Wheelbase: 107 inches
- Electrical system: Auto-lite ignition.
- Equipment: Front and rear fenders, wood running boards, metal side aprons, side tire carrier, stop light, spare rim, tool kit, gasoline gauge, gasoline filter.
- General dimensions and length: Tread standard 56 inches. Turning radius approximately 2 feet.
