Technical information on carburetion and fuel-feed methods: six scanned pages describing how the vacuum tank draws fuel from the rear tank and feeds the carburetor, with diagrams and troubleshooting. Click a page to read it full size.

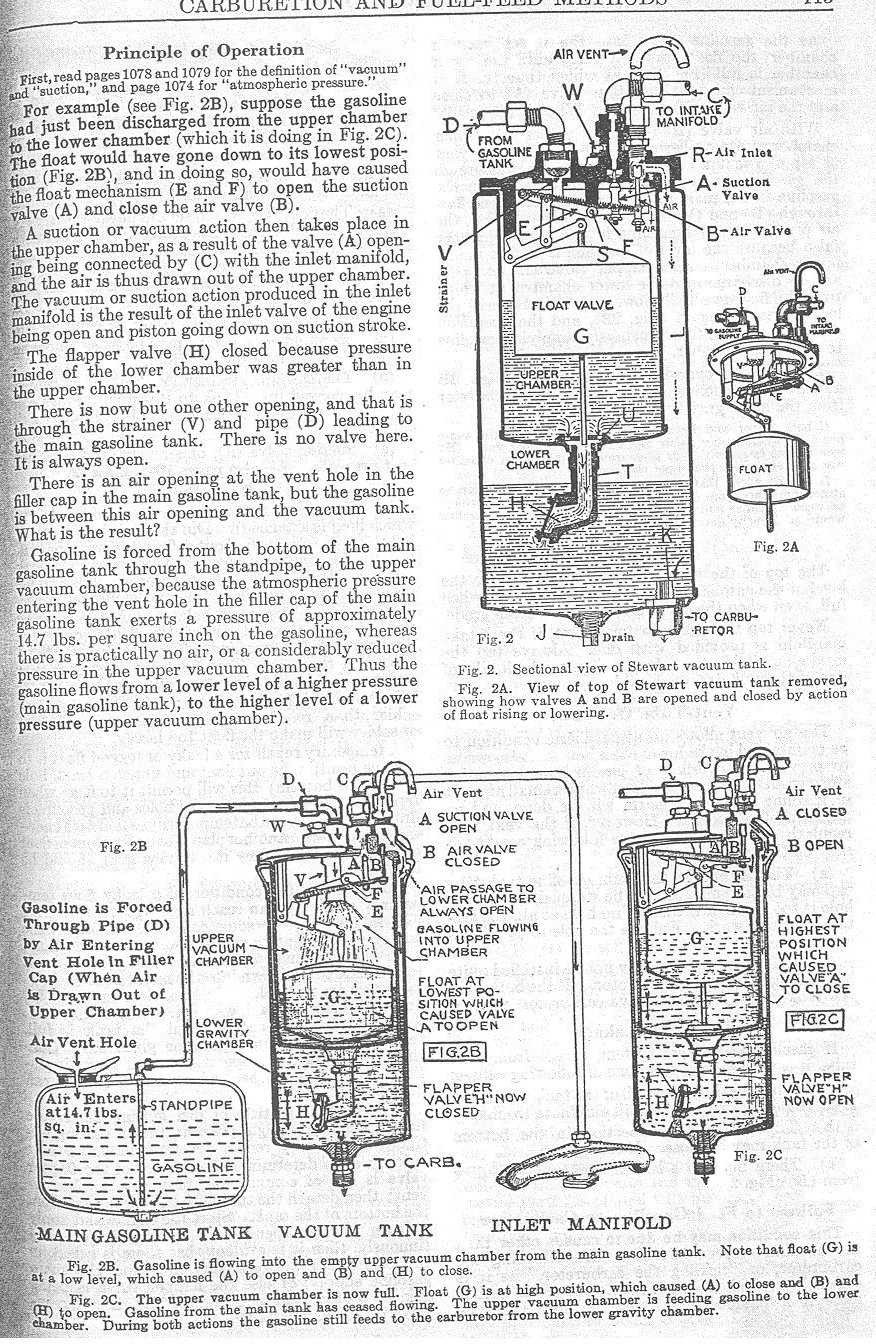

Vacuum tank data, page 1
Vacuum tank data, page 2

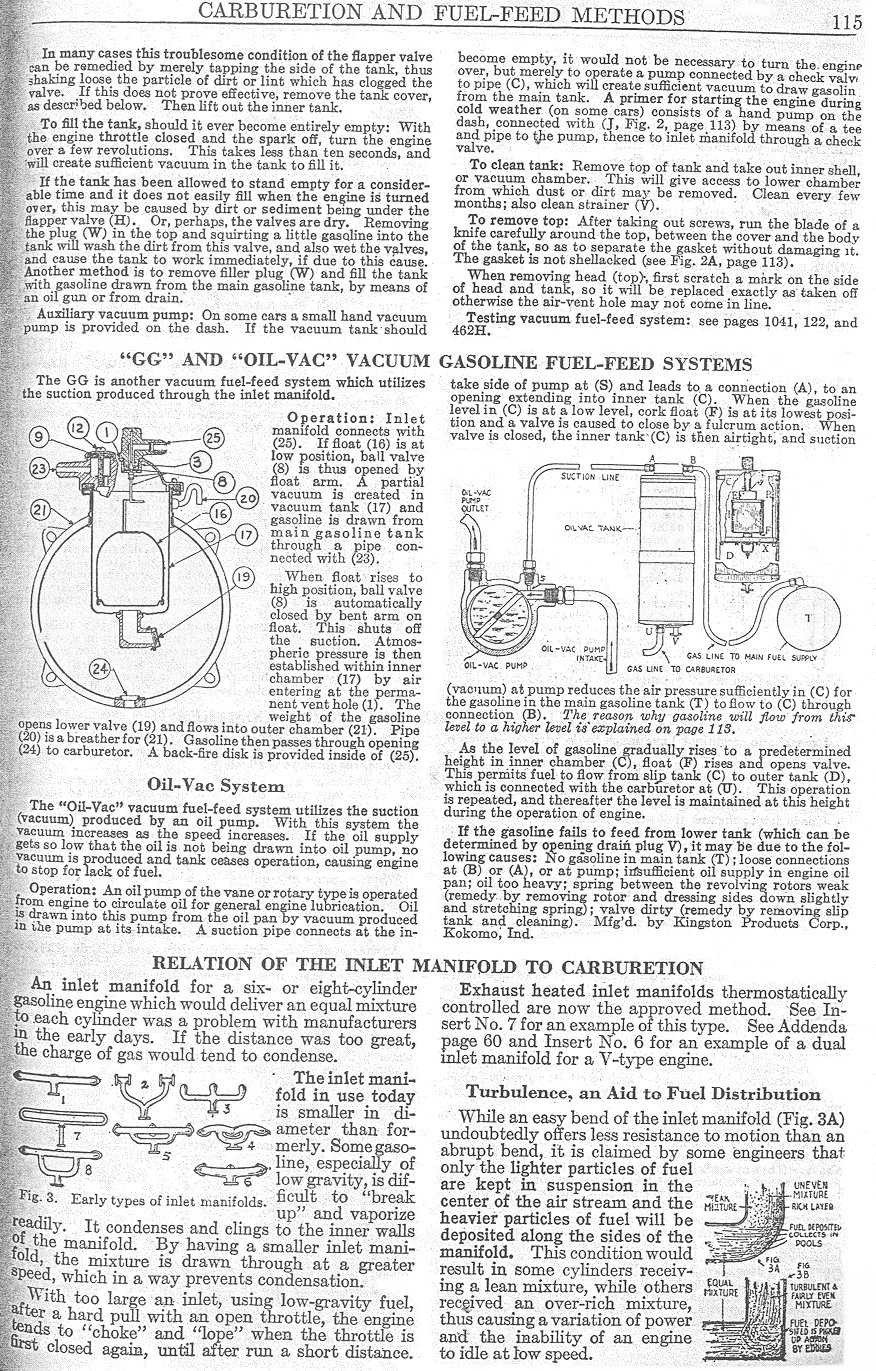

Vacuum tank data, page 3

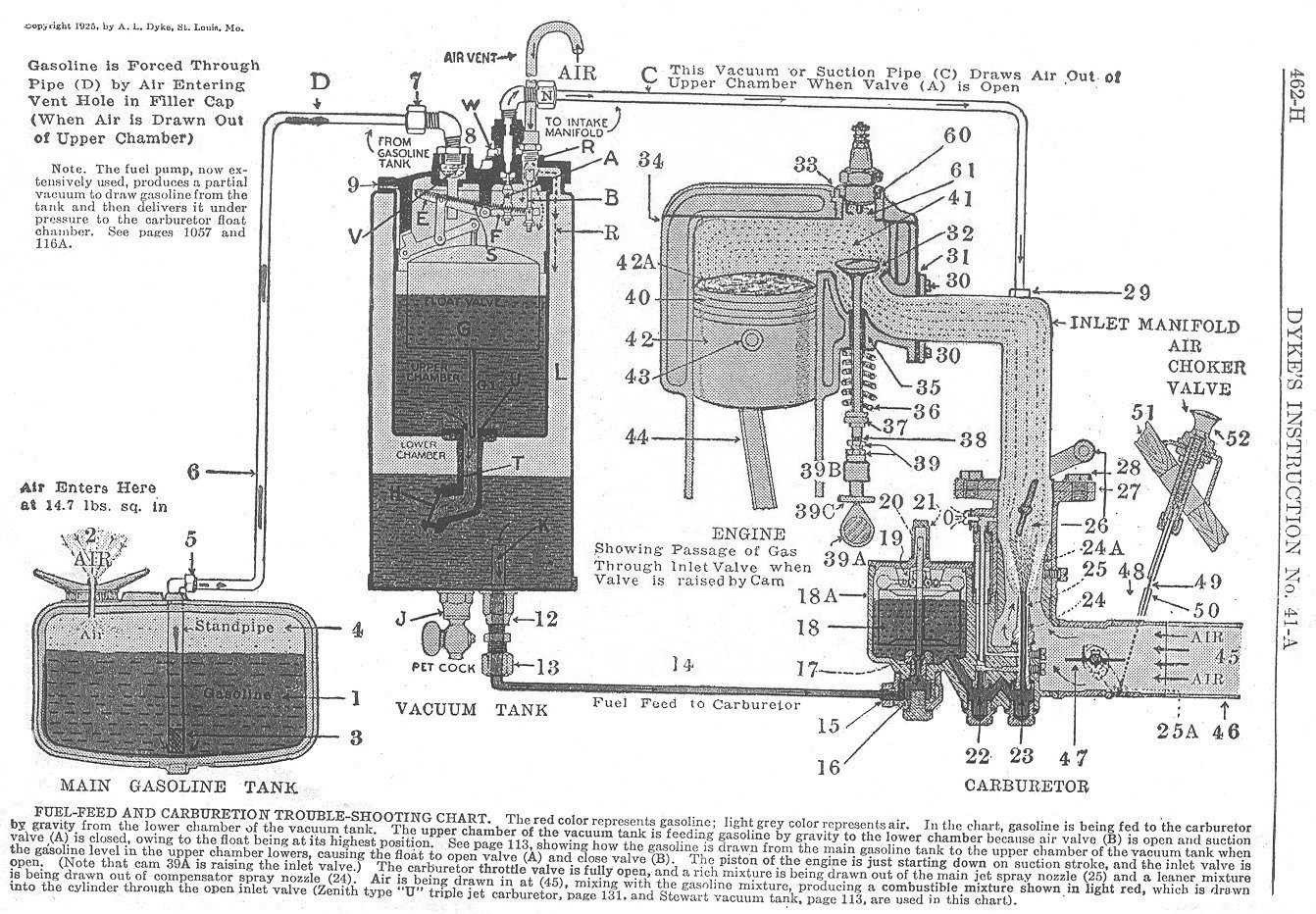

Vacuum tank data, page 4

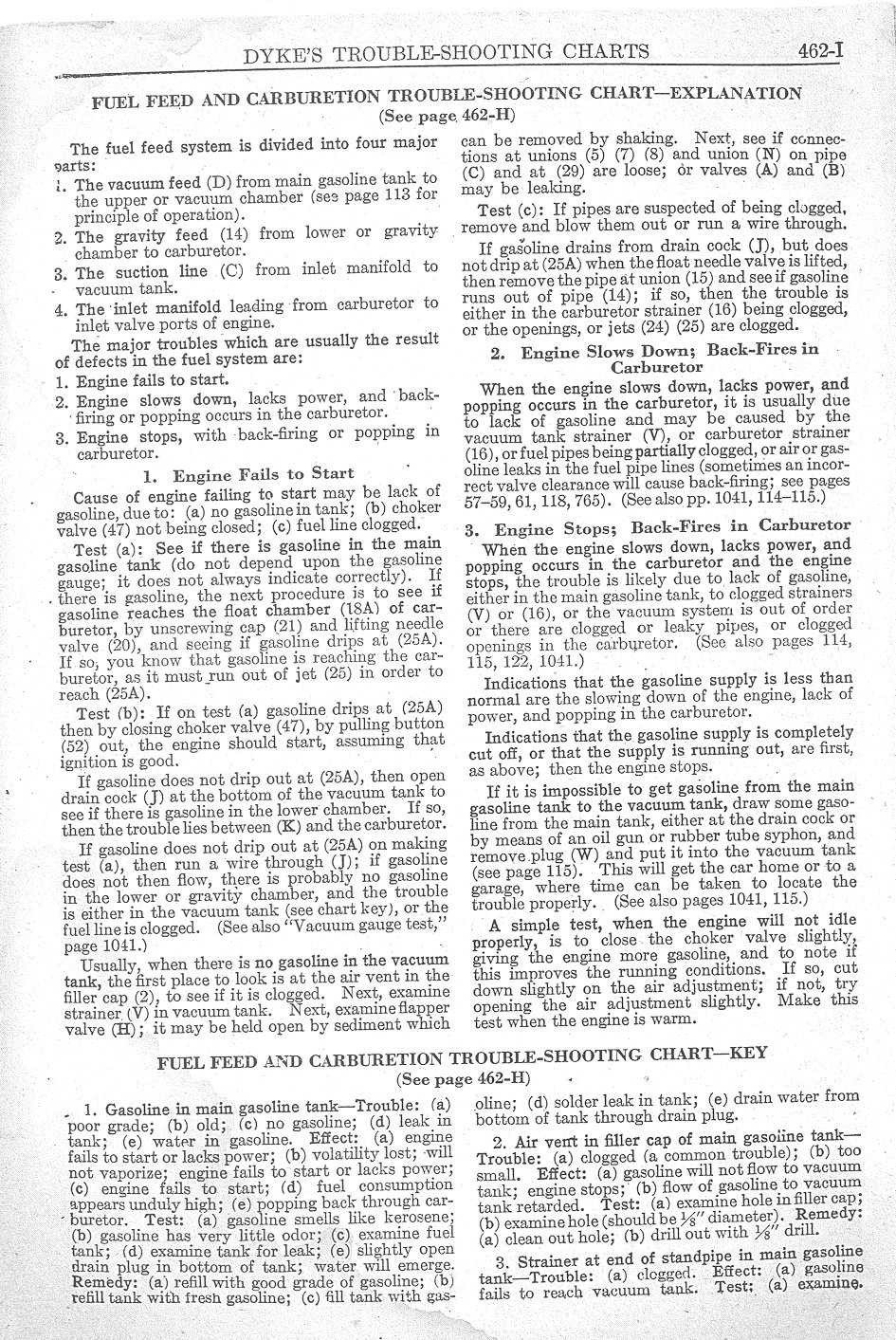

Vacuum tank data, page 5

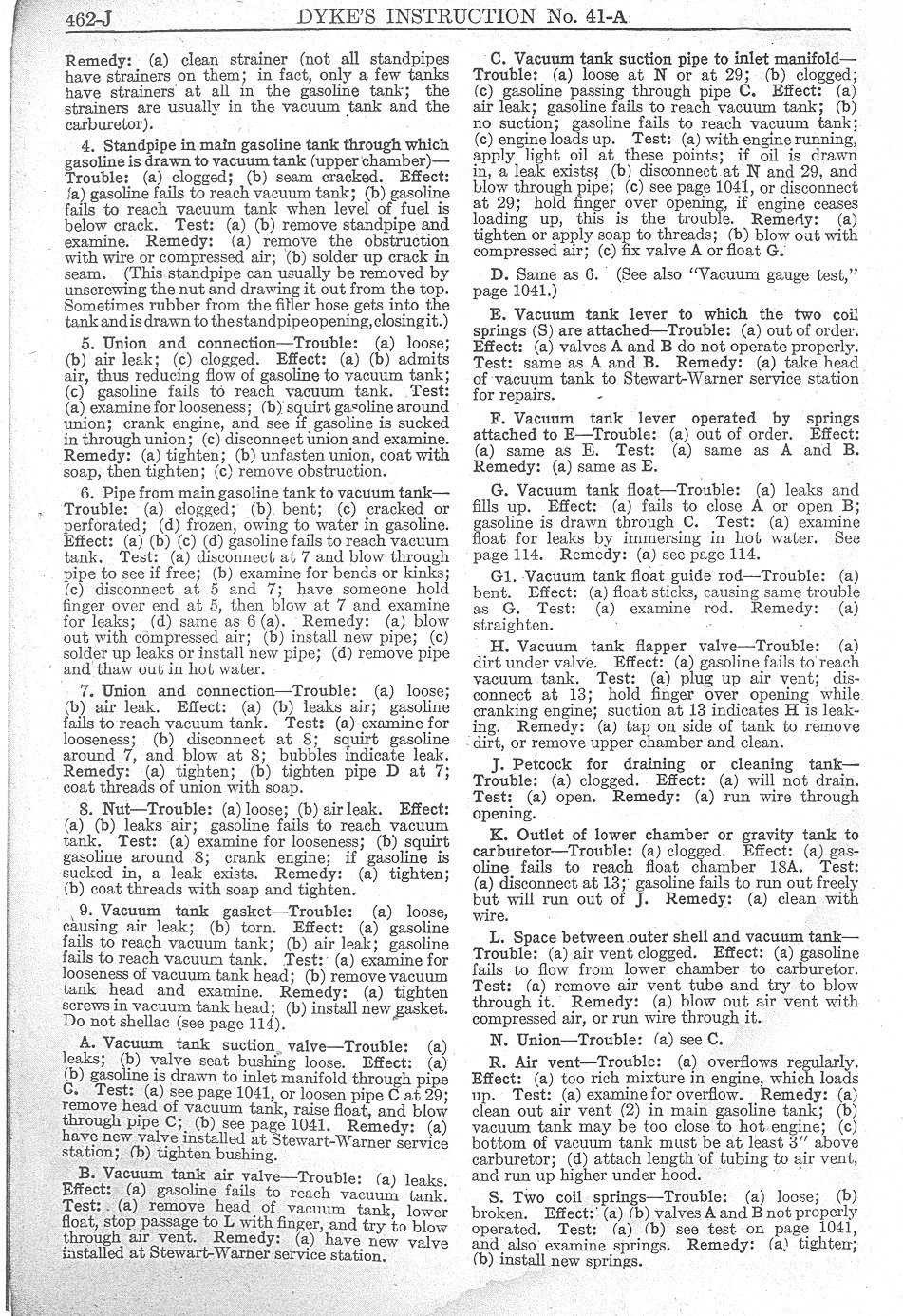

Vacuum tank data, page 6
For step-by-step repair, see How to Repair a Vacuum Tank.
Information donated by Jan Arnett.
